How Durable Is Silicone Heat Transfer Printing?

How Durable Is Silicone Heat Transfer Printing?

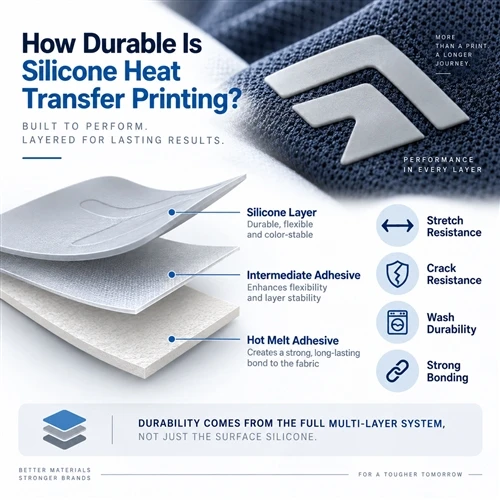

A durable silicone heat transfer is best understood as a multilayer bonding system. Each layer performs a different job, and failure in any one layer can shorten the life of the whole transfer.

1. Silicone Layer: The First Defense Against Cracking and Wear

The silicone layer is the visible outer surface of the transfer. It is directly exposed to stretching, folding, abrasion, and daily wear. Its main durability task is to remain flexible without developing permanent cracks or surface damage.

After proper curing, the silicone forms a crosslinked elastic structure. This allows the printed design to extend with the garment and recover when the stress is released. For that reason, silicone is well suited to graphics that must tolerate repeated deformation.

Durability depends on achieving the right balance of elasticity, tensile strength, rebound, abrasion resistance, and surface stability. A material that is too rigid may crack under repeated stretching, while an under-cured or poorly formulated silicone may lack mechanical strength or surface stability.

What Should Be Evaluated in the Silicone Layer?

• Elastic recovery after repeated stretching
• Resistance to cracking and permanent deformation
• Surface abrasion resistance
• Stable curing and non-tacky surface performance
• Mechanical strength without excessive hardness

2. Intermediate Adhesive: The Key to Preventing Delamination

The intermediate adhesive is often overlooked, but it is critical to long-term durability. Silicone and hot melt adhesives have different chemical and mechanical characteristics. Without a suitable transition layer, the interface between them may become the weakest point in the transfer.

The intermediate adhesive acts as a bridge. It must bond reliably to the cured silicone on one side and to the hot melt adhesive on the other. It also helps distribute stress between materials that may stretch, soften, or recover differently during washing and wear.

When this layer is poorly matched, the transfer can fail internally even when the silicone surface still looks intact. The result is interlayer separation, where the transfer begins to split between functional layers rather than peeling directly from the garment.

Why Interlayer Bonding Matters

• Prevents separation between silicone and hot melt layers
• Improves stress transfer during stretching and bending
• Supports wash durability by keeping the multilayer structure intact
• Reduces hidden internal failure that may not be visible at first

3. Hot Melt Adhesive: The Layer That Keeps the Transfer on the Garment

The hot melt adhesive determines whether the complete transfer remains firmly attached after heat pressing. During application, the adhesive softens under heat and pressure, wets the substrate surface, and then solidifies as it cools to create the final bond.

A durable hot melt system needs more than strong initial tack. It must maintain cohesive strength and bonding stability through repeated washing, flexing, moisture exposure, and mechanical stress.

If the hot melt layer is weak or the process window is poorly controlled, common failure signs include edge lifting, localized peeling, and gradual loss of adhesion after laundering.

What Determines Hot Melt Durability?

• Initial bonding strength after heat pressing
• Cohesive strength of the adhesive layer
• Resistance to washing, flexing, and moisture
• Stable bonding after repeated heating and cooling cycles
• Correct melt, flow, and solidification behavior during transfer

4. True Durability Comes From Compatibility Between All Three Layers

A silicone heat transfer cannot be judged by one material specification alone. The silicone layer, intermediate adhesive, and hot melt adhesive must work as one mechanical system.

If the silicone is too stiff compared with the adhesive layers, stress can concentrate at an interface. If the intermediate adhesive has insufficient compatibility, delamination may start between layers. If the hot melt adhesive lacks long-term bonding strength, the entire transfer can lift from the garment even though the silicone itself remains undamaged.

The best-performing constructions allow the layers to deform together and recover without creating excessive stress at the interfaces.

5. Curing and Layer Processing Also Affect Durability

Good raw materials can still produce weak transfers if curing and layer processing are inconsistent. The silicone must reach a stable cure state, the intermediate adhesive must form a uniform bond, and the hot melt layer must be applied and activated within the correct processing window.

Under-curing can reduce silicone strength and interlayer adhesion. Uneven coating can create local weak points. Excessive or insufficient heat during final transfer can also affect adhesive flow and bonding quality.

For this reason, durability is the result of both material selection and process control.

6. How Should Silicone Heat Transfer Durability Be Tested?

A newly produced transfer may look perfect but still contain weak interfaces. Practical durability testing should therefore evaluate the complete multilayer structure, not just the surface appearance.

Stretch Testing

Check whether the silicone develops cracks, whitening, or permanent deformation after repeated extension and recovery.

Interlayer Peel Testing

Check whether separation occurs between the silicone, intermediate adhesive, and hot melt adhesive. Internal delamination is a key sign of poor layer compatibility.

Wash Testing

After repeated laundering, inspect all three failure modes: surface cracking, interlayer delamination, and edge lifting or peeling from the garment.

Conclusion

Silicone heat transfer printing can be highly durable, but its durability comes from a complete bonding system rather than from the silicone layer alone.

The silicone layer controls flexibility, abrasion resistance, and crack resistance. The intermediate adhesive controls interlayer bonding and helps prevent delamination. The hot melt adhesive controls the final bond that keeps the transfer attached during washing and wear.

For a truly durable transfer, these three layers must be compatible, correctly cured, and processed as one system. The most meaningful performance standard is simple: after repeated use, the transfer should resist cracking, delamination, edge lifting, and peeling.
