How Does 3D Silicone Embossing Work?

The 3D Silicone Embossing Process at a Glance

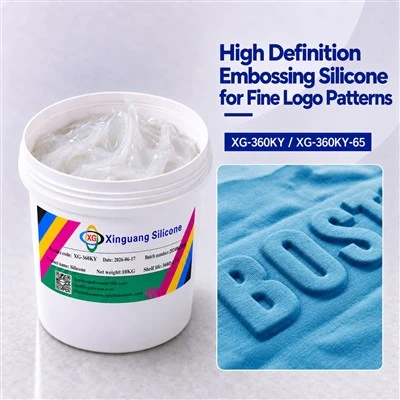

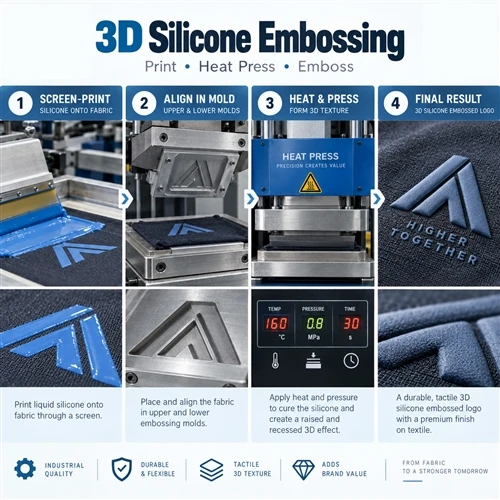

Step-by-Step: How 3D Silicone Embossing Is Made

Step 1: Prepare Artwork for an Embossed Structure

The artwork must be designed as a physical surface, not only as a flat graphic. The production team determines which areas should rise, which should recess, how high the relief should be, and where transition slopes or edges are required. Very fine lines, tiny gaps, and abrupt changes in height may be difficult to reproduce consistently, so the design should be reviewed for manufacturability before a mold is made.

Step 2: Build the Upper and Lower Embossing Molds

A matched mold set creates the final relief. One side carries the positive profile and the other provides the corresponding negative cavity or support surface. Mold accuracy directly influences edge sharpness, depth consistency, fabric compression, and registration. For production runs, metal molds are commonly selected because they can tolerate repeated heat and pressure cycles.

Step 3: Mix the Embossing Silicone

Embossing silicone is typically supplied as a base material used with a catalyst or curing agent. Pigment can be added when the silicone itself needs a specific color. Mixing ratio, working time, viscosity, and curing behavior should follow the silicone supplier's technical data because these factors influence printability, shape retention, and final elasticity.

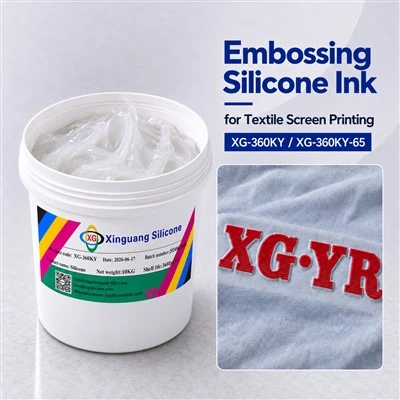

Step 4: Screen Print the Silicone onto the Fabric

The prepared silicone is screen printed onto the area that will be embossed. In many garment embossing processes, the silicone is printed on the back side of the fabric. When the fabric is later pressed in the mold, the silicone provides body and support so the front surface can hold a clean raised form.

The printed deposit must be consistent. Too little material may produce weak relief or incomplete support; too much can create excess thickness, edge contamination, or uneven compression. Mesh count, stencil thickness, squeegee pressure, silicone viscosity, and number of print passes all affect the deposited amount.

Step 5: Align the Printed Area with the Mold

Registration is critical. The silicone-printed zone must match the relief area of the mold, otherwise the finished logo can shift, show uneven height, or distort the fabric. Factories may use positioning marks, jigs, templates, or fixed garment loading systems to improve repeatability during bulk production.

Step 6: Press with Heat and Pressure

The fabric is placed between the upper and lower embossing molds and the machine closes under pressure. During this stage, the mold shapes the textile while heat accelerates silicone curing. The silicone and fabric stabilize together, producing the final convex and concave structure.

Published industry examples commonly show upper-mold temperatures around 150–180°C, lower-mold temperatures that may be set lower, and press times roughly in the 8–20 second range. These figures should be treated only as process examples-not as fixed settings-because the correct parameters depend on the ink system, garment fabric, mold depth, press pressure, machine design, and production speed.

Step 7: Cool, Release, and Stabilize the Shape

After pressing, the garment should be removed in a controlled way. Premature pulling or stretching can reduce edge definition or distort a hot embossed area. Cooling allows the silicone network and textile structure to stabilize before the piece moves to the next process.

Step 8: Inspect the Finished 3D Effect

Quality control should evaluate more than appearance. A good production sample should have consistent embossing height, accurate registration, clean edges, no obvious bubbles or scorch marks, suitable elasticity, and reliable adhesion to the textile. For apparel applications, wash tests, stretch tests, and repeated flexing are useful before the process is approved for mass production.

Why Is the Silicone Printed Before the Fabric Is Embossed?

The printed silicone acts as a structural support layer. Heat pressing alone can temporarily shape many textiles, but the relief may relax after cooling, stretching, or washing. By placing embossing silicone in the target area before pressing, the cured silicone helps the textile retain the intended profile while still allowing flexibility.

This is also why the process can create a fuller, more stable 3D look than ordinary fabric embossing. The printed silicone fills and supports the relief zone instead of relying only on the fabric fibers to hold the shape.

Key Factors That Control 3D Embossing Quality

Silicone Viscosity and Shape Retention

The silicone must be printable but also strong enough to support the embossed structure after curing. Material that flows too easily can reduce definition; material that is too stiff can be difficult to print evenly.

Printed Silicone Thickness

The deposited amount influences how much support is available beneath the relief. A deeper mold generally requires careful control of silicone volume and fabric behavior rather than simply adding more ink without testing.

Mold Geometry

Relief height, draft angle, corner radius, edge sharpness, and the relationship between the upper and lower molds all affect the final look. Good mold engineering is essential for clean release and repeatable production.

Temperature, Pressure, and Dwell Time

These variables work together. Insufficient heat or time can cause incomplete cure and weak shape retention, while excessive heat or pressure may damage the textile, flatten surrounding areas, or create gloss and color changes.

Fabric Construction

Cotton, polyester, blends, knitted fabrics, and stretch performance materials respond differently to heat and compression. Coatings, dyes, fabric thickness, and elasticity can also change the result, so sampling on the actual production fabric is essential.

3D Silicone Embossing vs. High-Density Silicone Printing

Both techniques can produce a raised silicone appearance, but they build the 3D effect differently. High-density silicone screen printing usually creates height by depositing multiple layers of silicone through the screen. 3D silicone embossing uses a mold after printing, so the final surface can include defined curves, recessed areas, fabric deformation, and more complex relief transitions.

For simple raised logos, high-density printing may be efficient. For sculpted textures, convex-and-concave structures, or a more molded textile appearance, embossing offers greater control over the physical shape.

Common Applications

Sportswear and activewear chest logos

Hoodie and sweatshirt lettering

T-shirt fashion graphics

Sleeve and shoulder branding

Caps, bags, gloves, and textile accessories

Performance garments that require flexible 3D decoration

Fashion panels, geometric textures, and tactile surface details

Common Production Problems and What They Usually Mean

Frequently Asked Questions

Is 3D silicone embossing the same as a molded silicone heat-transfer logo?

No. In the process described here, silicone is first screen printed on the fabric and the textile is then embossed in a machine. A molded heat-transfer logo is produced as a separate silicone component and later transferred or bonded to the garment.

Is the silicone printed on the front or back of the fabric?

Both systems can exist, but many fabric-embossing processes print the supporting embossing silicone on the reverse side so the front surface can be pushed into a raised shape. The correct method depends on the design and desired appearance.

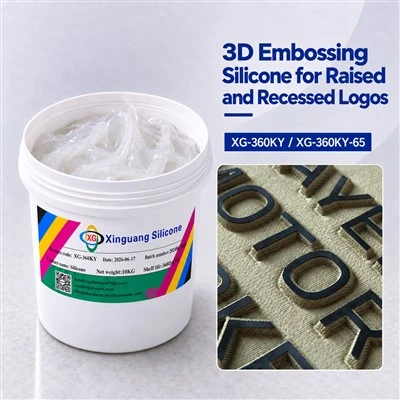

Can the process create both raised and recessed areas?

Yes. A matched male/female mold can create convex and concave zones, provided the artwork, mold clearance, silicone deposit, and fabric construction are engineered for that relief.

Can it be used on polyester and stretch fabrics?

Often yes, but heat resistance, dye migration, coatings, elasticity, and fabric recovery must be tested. Production settings should be validated on the exact fabric before bulk manufacturing.

How durable is the 3D effect?

Durability depends on silicone formulation, curing, fabric compatibility, relief design, and production control. Properly developed systems are intended to remain flexible and retain their shape through normal garment use and washing, but wash and stretch testing should be part of approval.

Conclusion

3D silicone embossing is best understood as a print-and-press process. First, embossing silicone is screen printed onto the required area of the textile. Next, the printed fabric is accurately positioned between matched embossing molds. Heat and pressure then cure the silicone while shaping the fabric into a stable raised-and-recessed structure.

For garment brands, printers, and textile manufacturers, the quality of the finished effect depends on the entire system-not only the silicone ink. Artwork, mold engineering, print deposit, fabric construction, registration, temperature, pressure, curing time, and testing all have to work together. When these variables are controlled correctly, silicone embossing can deliver a clean, flexible, premium 3D finish that is difficult to achieve with ordinary flat printing.
