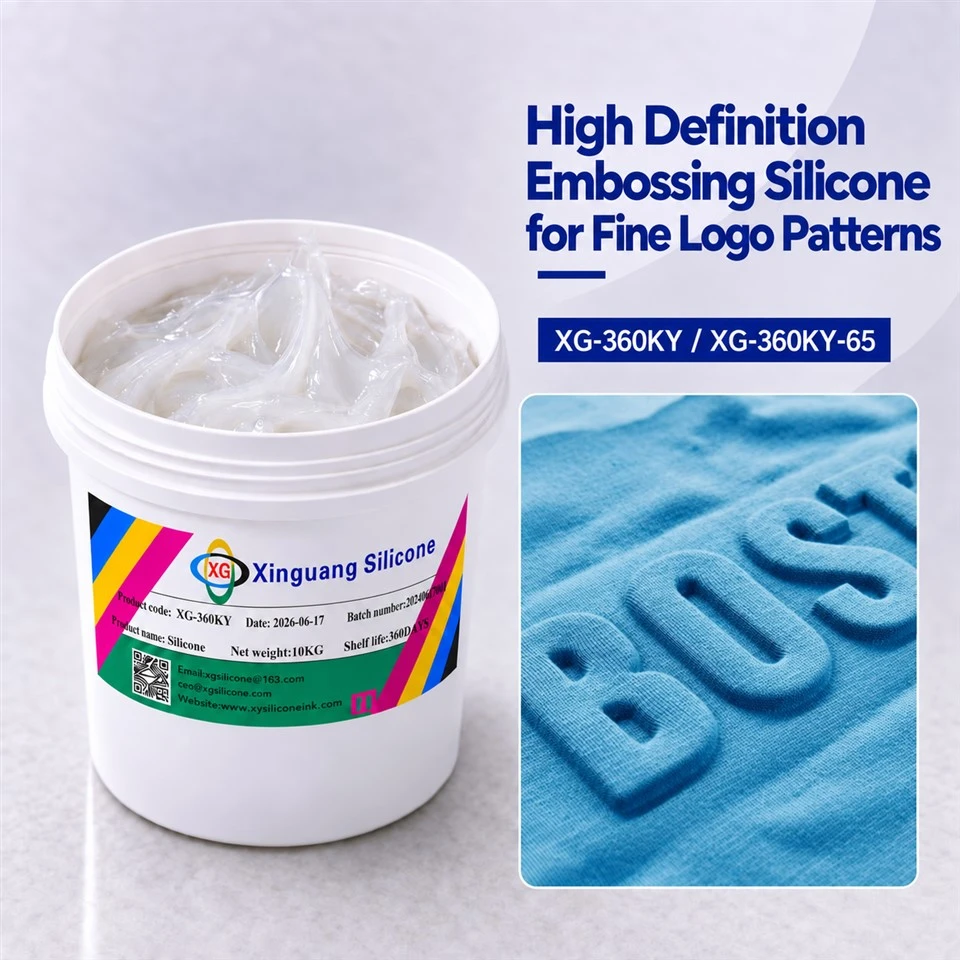

High Definition Embossing Silicone For Fine Logo Patterns

Product Overview

XG-360KY embossing silicone can be used for textile logo designs that require fine lines, small lettering, narrow gaps and detailed surface textures. In fine embossing applications, the final pattern quality depends on the combined control of silicone rheology, mold accuracy, artwork structure, material distribution and processing conditions.

When these factors are properly matched, XG-360KY is suitable for producing detailed logos and decorative patterns with clear contours and visible texture. This page focuses on fine-detail forming performance rather than general 3D embossing or raised-and-recessed structure.

Key Advantages for Fine Logo Patterns

1. Controlled Shape for Fine Lines and Small Lettering

XG-360KY has a high-viscosity paste consistency. Part A has a typical viscosity of 900,000 ± 100,000 mPa·s. This provides sufficient body during processing and is suitable for applications where narrow lines, compact lettering and controlled pattern shape are important.

2. Clear Logo Edge Definition

Fine logos often contain sharp corners, small gaps and closely spaced graphic elements. Proper mold design and controlled silicone distribution help maintain the outer contour of letters, numbers and brand marks, improving visual separation between adjacent details.

3. Fine Texture Reproduction

Embossing molds can include narrow grooves, repeated lines, geometric textures and other small surface structures. When mold precision and processing conditions are properly matched, these details can become part of the finished silicone surface and create a more refined tactile appearance.

4. Suitable for Complex Logo Structures

Detailed brand marks may combine small text, thin strokes, tight spacing and multiple texture zones in one design. These patterns require more precise control than simple large-area logos. XG-360KY can be positioned for such applications when the mold and process are optimized for the target design.

5. Flexibility for Delicate Embossed Details

Fine embossed structures also need sufficient flexibility after curing. XG-360KY has a Shore A hardness of 38 ± 2 and an elongation at break of at least 450%, helping the cured silicone retain flexibility while maintaining detailed embossed structures.

Factors That Affect Fine Embossing Quality

• Mold accuracy - fine details require precise cavities, edges and texture geometry.

• Artwork design - extremely narrow gaps, very thin strokes or overly dense details may require design adjustment.

• Silicone amount - too much or too little material can reduce definition or incomplete filling.

• Embossing conditions - temperature, pressure and forming time should be matched to the mold and substrate.

• Fabric surface - weave, surface flatness and fabric movement can influence the visibility of small details.

Typical Technical Data

The values above are typical data from the XG-360KY technical data sheet and may vary with test conditions or product adjustments.

Recommended Process for Fine Logo Embossing

Step 1: Review the Logo Design

Confirm whether small letters, narrow gaps and fine lines are suitable for mold production. Simplify extremely dense details if necessary to improve process stability.

Step 2: Prepare a High-Precision Mold

Use a mold with clean edges and sufficient accuracy for the target line width, groove shape and surface texture. Mold quality directly affects detail reproduction.

Step 3: Mix the Silicone System

Use XG-360KY with the compatible XG-866B series platinum catalyst. The technical data sheet lists a recommended A:B mixing ratio of 100:2. Add compatible silicone pigment only as required and mix thoroughly.

Step 4: Control Material Distribution

Apply a suitable amount of silicone so that small cavities and narrow texture areas are filled without excessive overflow. The required amount depends on mold depth, logo size and fabric structure.

Step 5: Emboss and Form

Form the design under suitable temperature, pressure and time. These parameters should be established by production testing because the current TDS does not provide fixed embossing values for fine-detail logos.

Step 6: Inspect Fine Details

After demolding, check small letters, edge sharpness, narrow grooves, texture continuity and overall pattern clarity before mass production.

Typical Fine Logo Designs

• Small-letter logos

• Fine-line patterns

• Narrow grooves and linear textures

• Detailed brand marks

• Compact letters and numbers

• Geometric micro-textures

• Decorative repeated patterns

Applications

The XG-360KY technical data sheet lists cotton, cotton-blended fabrics and shoe-upper materials as typical substrates. Fine-detail embossing applications can include garment brand marks, small shoe-upper logos, compact lettering, textured decorative graphics and detailed 3D identity elements.

Why Choose XG-360KY for Fine Embossing?

The key value of fine embossing is detail control rather than simply increasing pattern height. XG-360KY combines a high-viscosity paste consistency with good elasticity and mechanical properties. When used with a precise mold and stable forming process, it is suitable for applications where small lines, clean edges and detailed logo textures are required.

Short Product Description

XG-360KY High Definition Embossing Silicone is designed for fine textile logo patterns with small lettering, narrow lines and detailed surface textures. Its high-viscosity paste consistency, together with good elasticity and mechanical strength, makes it suitable for detailed embossing applications when mold accuracy and processing conditions are properly controlled.
