Silicone Grip Dots vs Stripes: Which Pattern Works Better?
A silicone grip pattern does not need to cover an entire textile surface. For many products, a series of small contact points or narrow printed lines can place silicone precisely where the fabric needs additional traction. Two common solutions are silicone grip dots and silicone grip stripes, but they are not interchangeable in every application.

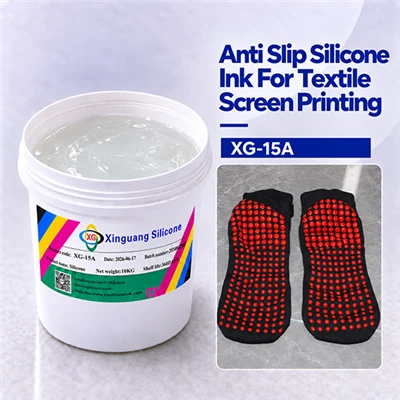

Anti Slip Silicone Ink For Textile Screen Printing can be used to develop either format with XG-15A in a heat-curing workflow. The choice should start with the finished product, not the visual appearance of the print.
Where Silicone Grip Dots Work Well

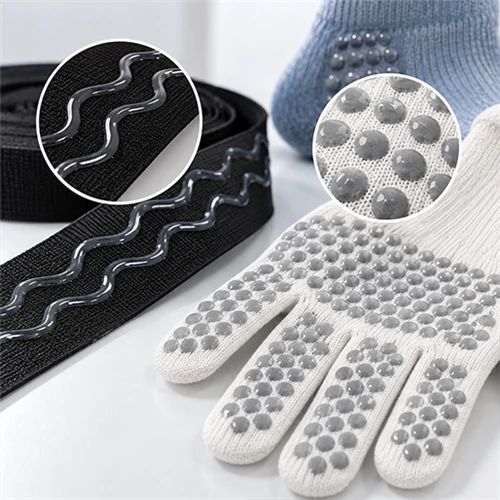

Dots distribute separate silicone contact points over a selected area. On the sole of a sock, a repeated dot pattern can follow the foot-contact zone. On some glove surfaces, individual dots can also be arranged around expected contact locations.
Dot size, center-to-center spacing and printed height affect how the pattern feels when the textile bends or stretches. Large dots with little spacing are not necessarily better than a more distributed pattern. Check how the dots shift when the actual sock or glove is worn.
When Silicone Grip Stripes Make Sense
Stripes are useful where grip needs to follow a long, narrow textile component. Elastic webbing is a clear example: silicone can be printed as continuous lines or separated segments along the band. On relevant lingerie shoulder straps or backpack webbing sections, the pattern should face the surface where slipping actually occurs.
A long stripe also needs flex testing. For an elastic tape, a segmented stripe may behave differently from a continuous line when the tape is stretched, folded or sewn into a product.
Printing Differences
The supplied process reference recommends 20–40 mesh as a starting range for round silicone grip dots and 60–80 mesh for screen-printed stripes. One pass is normally the stated starting point after process adjustment. For stripes, a dispensing or stripe machine may also be used for one-pass production.
These ranges are references, not a universal recipe. Pattern geometry, viscosity, stencil thickness and substrate texture still need practical trials.
Which Pattern Should a Manufacturer Choose?
Compare at least two candidate patterns on the finished textile and its intended contact surface. Check the contact feel, pattern uniformity, textile flexibility and adhesion after handling. Do not claim that a particular layout delivers a fixed percentage of extra grip without measured test results.
For mesh selection, read What Screen Mesh Is Best for Silicone Grip Dots and Stripes?. For elastic bands, see Anti-Slip Silicone Stripes for Elastic Webbing.
How to Test Two Patterns Fairly
Print both candidate layouts on the same textile type and cure them using the approved process. Compare contact performance on the actual surface, then check that the print maintains its shape after the fabric is stretched or bent. Keep pattern dimensions and trial conditions in the sample record.
FAQ: Can Dots and Stripes Be Combined?
They can be designed together as separate grip regions when the finished product needs different contact patterns. Sample the combined layout rather than assuming both geometries will perform identically.
Related resource: Anti Slip Silicone Ink For Textile Screen Printing.
